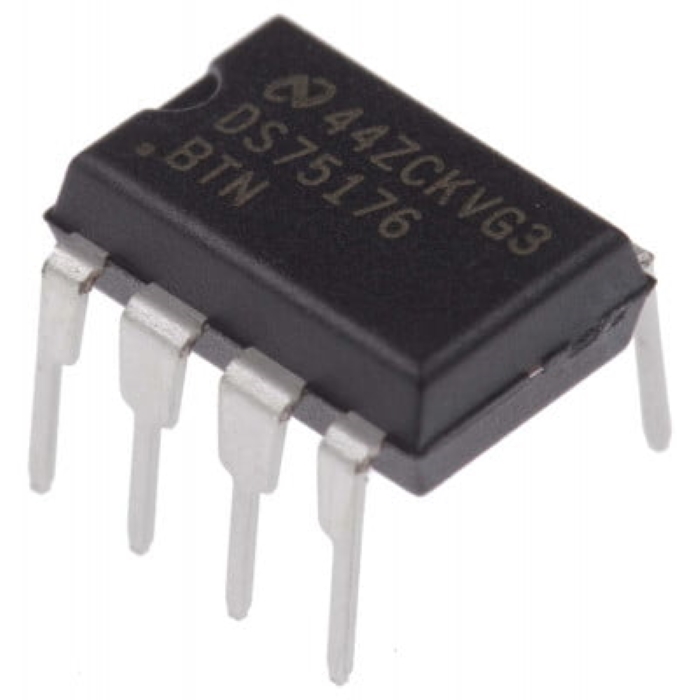

DS75176 RS-422/RS-485 Interface IC

DS75176B is a high speed differential TRI- STATE@bus/line transceiver designed to meet the requirements of EIA standard RS485 with extended common mode range ( 12V to —7V), for multipoint data transmission. In addition, it is compatible with RS-422. The driver and receiver outputs feature TRI-STATE capability, for the driver outputs over the entire common mode range of 12V to —7V. Bus contention or fault situations that cause excessive power dissipation within the device are handled by a thermal shutdown circuit, which forces the driver outputs into the high impedance state. DC specifications are guaranteed over the O to 700C temperature and 4.75V to 5.25V supply voltage range. Features:- Meets EIA Standard RS485 for Multipoint Bus Transmission and is Compatible with RS-422. Small Outline (SOIC) Package Option Available for Minimum Board Space. 22 ns Driver Propagation Delays. Single 5V supply. —7V to 12V Bus Common Mode Range Permits Ground Difference Between Devices on the Bus. Thermal Shutdown Protection. High Impedance to Bus with Driver in TRI- STATE or with Power Off, Over the Entire Common Mode Range Allows the Unused Devices on the Bus to be Powered Down. Pin out Compatible with DS3695/A and SN75176A/B. Combined Impedance of a Driver Output and Receiver Input is Less Than One RS485 Unit Load, Allowing up to 32 Transceivers on the Bus. 70 mV Typical Receiver Hysteresis.
